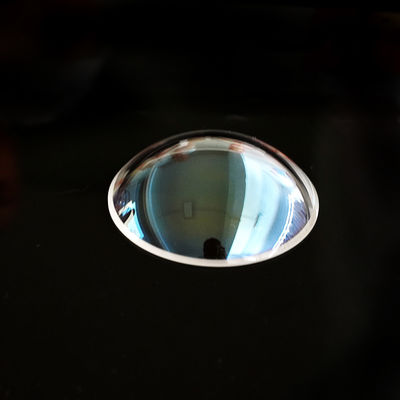

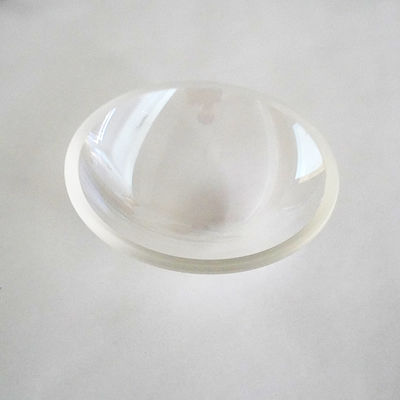

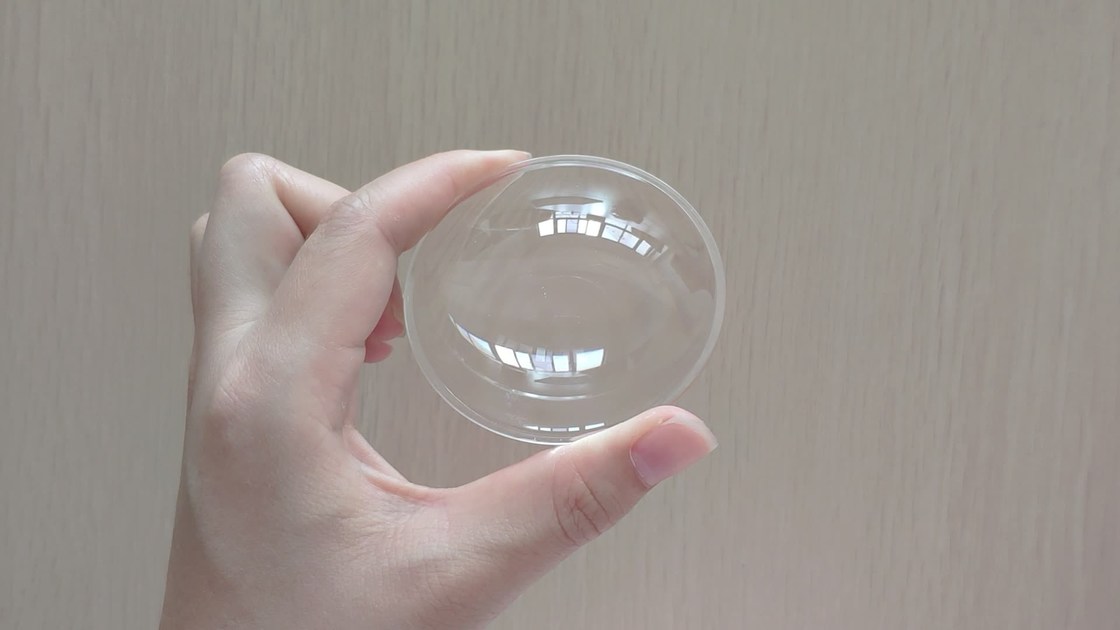

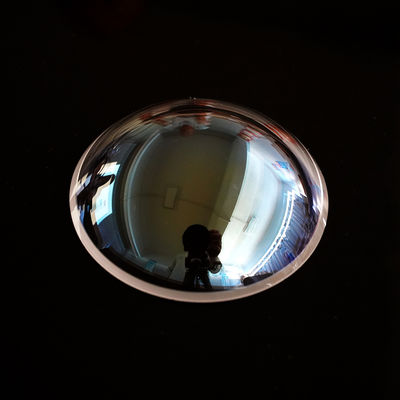

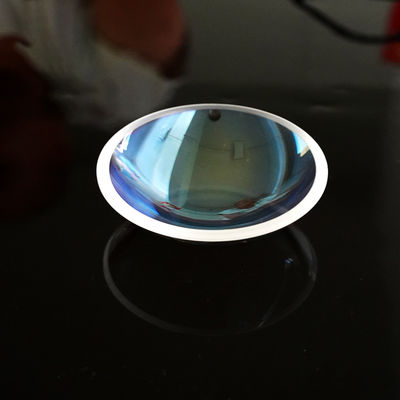

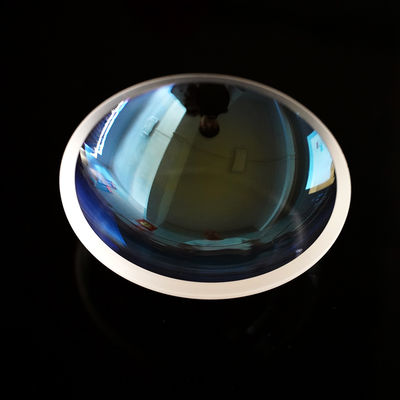

Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens

Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens

큰 이미지 :  Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens

제품 상세 정보:
원래 장소: 상하이, 중국
브랜드 이름: Advance
결제 및 배송 조건:
최소 주문 수량: 10개 부분
가격: $10.00/Pieces 10-99 Pieces
포장 세부 사항: 진공 + EVA + 판지
공급 능력: 달 당 10000000 조각/조각
접촉

Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens

설명
보증: - 주문 제작된 지원: OEM, ODM
용법: 광학 구조: 메니스커스 렌즈
형태: 라운드 재료: BK7 및 기타 광학 유리, 석영, 사파이어, Ge, Si, ZnSe, CaF2 등
초점 거리: 관습 코팅: 요청시
지름: 관습 직경 공차: +/-0.005mm
지상 정확도: N=1~0.5 중심 두께 공차: +/- 0.001mm
초점 거리 허용한도: +/-1% 표면 품질: 10/5~60/40
적용 분야: 이미징, 조명, 레이저 등 공항: 상하이

Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 0
Specification
Materials
BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Diameter
1.5~300mm
Radius
R0.8mm-∞
Focal length
-30000mm~+30000mm
Center thickness tolerance
+/-0.01mm
Diameter tolerance
+/-0.005mm
Focal length tolerance
+/-1%
Surface accuracy
N=1~3
Irregularity
ΔN=0.1~0.5
Decenter
3''~1''
Surface quality
10/5~60/40
Coating
Upon request
Application area
Imaging,Lighting,Laser etc
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 2
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 4
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 6
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 8
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 10
Recommend Products
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 12
Company Profile
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 14
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 16
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc. Company Advantages:
1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 18
Exhibition
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 20
Packing & Delivery
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 22
Dia 20mm convex and concave optical BK7 glass optical instruments meniscus lens 24
FAQ
Q:What are your main products or Which fiefd do your products be used?
A:We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q:What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.

Q:What's your MOQ?
A:10pcs.
Q:What's your leadtime?
A:1day for inventory and 25~35days for the new project.

Q:What's your shipping type?
A:Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q:What's the payment condition?
A:T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q:What's your quality guarantee period?
A:Three years.
